What ISO standards does BIMVEDH adhere to for BIM execution?

BIMVEDH strictly complies with ISO 19650-1 and ISO 19650-2 standards for information management throughout the delivery phase of assets, utilizing Common Data Environment (CDE) naming protocols.

What Level of Detail (LOD) modeling does BIMVEDH support?

BIMVEDH delivers 3D BIM models from conceptual LOD 100 up to fabrication-ready LOD 400 and as-built facility management LOD 500 digital twins.

How does 4D & 5D BIM reduce construction rework costs?

By linking Primavera P6 or MS Project schedules directly to 3D Revit models, BIMVEDH detects spatio-temporal logistics clashes before site mobilization, saving an average of 14.8% in direct rework costs.

Back to Portfolio

IndustrialLOD 400 + 5D QTOISO 19650 VERIFIED

Auto-Tech EV Manufacturing Plant & Warehouse

Client: Vanguard EV Dynamics

Location: Pune, India

Area: 2,200,000 Sq. Ft.

Year: 2024

01. PROJECT OVERVIEW

Engineering Scope & Objectives

Industrial VDC execution, structural steel BIM detailing, and automated 5D cost quantity takeoff for a 2.2M sq. ft. EV manufacturing plant.

Project Specifications

Sector Category:Industrial

Model Detail:LOD 400 + 5D QTO

Gross Built Area:2,200,000 Sq. Ft.

Execution Standard:ISO 19650-2

02. SERVICES DELIVERED

Multidisciplinary Engineering Services

Tekla Structural Steel Detailing & Shop Drawings

Heavy Machinery & Crane Clearance Modeling

5D Automated Quantity Takeoff (QTO)

Point Cloud Scan Verification

03. SOFTWARE USED

Engineering Software Engine

Tekla Structures

Synchro 4D Pro

CostX

Revit

04. CHALLENGES

Engineering Bottlenecks & Site Constraints

Fast-track 14-month construction schedule requiring daily material budget updates and heavy crane site logistic coordination.

05. SOLUTIONS

BIMVEDH Technical Implementation

Engineered 5D BIM cost connection with Primavera P6, generating automated weekly quantity variance reports and heavy machinery clearance simulations.

06. VERIFIED OUTCOMES

Quantitative Project Metrics & ROI

AUDITED ACCORDING TO ISO 19650

6400+Clashes Resolved

16.8%Cost Rework Saved

10 WksSchedule Compressed

14:1Verified ROI Ratio

Key Impact Highlights:

6,400 clashes resolved across 2.2 million square feet

Compressed steel erection schedule by 10 full weeks

INTERACTIVE VDC INSPECTION

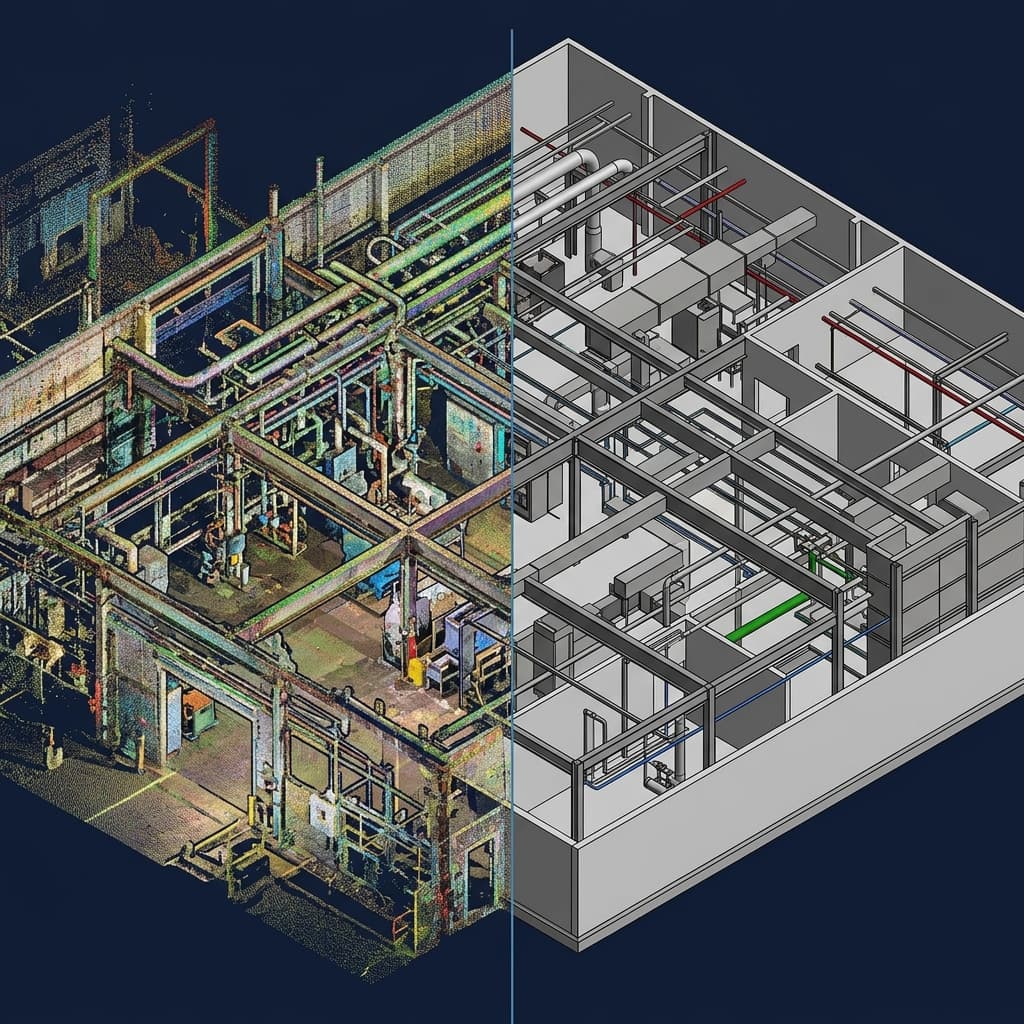

Scan-to-BIM Point Cloud vs. 3D Model Comparison

LOD 400 Parametric Revit Model

3D LiDAR Point Cloud Capture

INTERACTIVE SCAN-TO-BIM COMPARISONDrag slider left/right to inspect model accuracy

50% Model Alignment

07. PROJECT GALLERY

High-Resolution BIM Renders & Visual Artifacts
